WCB CF8 Steam Pressure Reducing Valve PN16 Class150
- Product No.：SV200502
Features

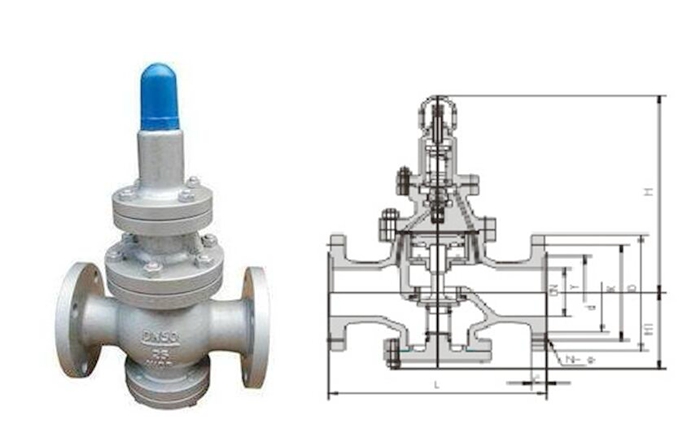

This steam pressure reducing valve belongs to pilot piston type pressure reducing valve. It contains main valve and pilot valve. The main valve is mainly composed of seat, main disc, piston, spring and so on. The pilot valve is mainly composed of seat, disc, diaphragm, spring, adjusting spring and others. We can set the outlet pressure by adjusting the adjusting spring pressure, change outlet pressure by diaphragm, and close/open pilot to drive piston to adjust the main valve throttle open area, in order to realize the pressure reducing and steady function. It is mainly used in steam pipelines.
Product Information
Steam pressure reducing valve is essential component in steam systems, providing safe and reliable pressure control. These valves offer numerous features that contribute to their efficiency and effectiveness in industrial applications.
Steam pressure reducing valve is available in various configurations and sizes, making it highly adaptable to different applications. It can handle high-pressure and high-temperature steam, making it ideal for use in demanding industrial processes. These valves are also versatile, providing different pressure drop options depending on the specific requirements of the system.
Specifications
Pressure: PN16-PN100, Class150-Class600
Material: WCB, Stainless steel, etc
Medium: Steam
In conclusion, steam pressure reducing valves offer numerous benefits to steam system operators, including consistent pressure control, adaptability, energy efficiency, low maintenance, and durability. These features make these valves a crucial component in the success and safety of industrial processes.
This steam pressure reducing valve belongs to pilot piston type pressure reducing valve. It contains main valve and pilot valve. The main valve is mainly composed of seat, main disc, piston, spring and so on. The pilot valve is mainly composed of seat, disc, diaphragm, spring, adjusting spring and others. We can set the outlet pressure by adjusting the adjusting spring pressure, change outlet pressure by diaphragm, and close/open pilot to drive piston to adjust the main valve throttle open area, in order to realize the pressure reducing and steady function. It is mainly used in steam pipelines.
Product Information
Steam pressure reducing valve is essential component in steam systems, providing safe and reliable pressure control. These valves offer numerous features that contribute to their efficiency and effectiveness in industrial applications.
Steam pressure reducing valve is available in various configurations and sizes, making it highly adaptable to different applications. It can handle high-pressure and high-temperature steam, making it ideal for use in demanding industrial processes. These valves are also versatile, providing different pressure drop options depending on the specific requirements of the system.
Specifications
Pressure: PN16-PN100, Class150-Class600
Material: WCB, Stainless steel, etc
Medium: Steam
In conclusion, steam pressure reducing valves offer numerous benefits to steam system operators, including consistent pressure control, adaptability, energy efficiency, low maintenance, and durability. These features make these valves a crucial component in the success and safety of industrial processes.
