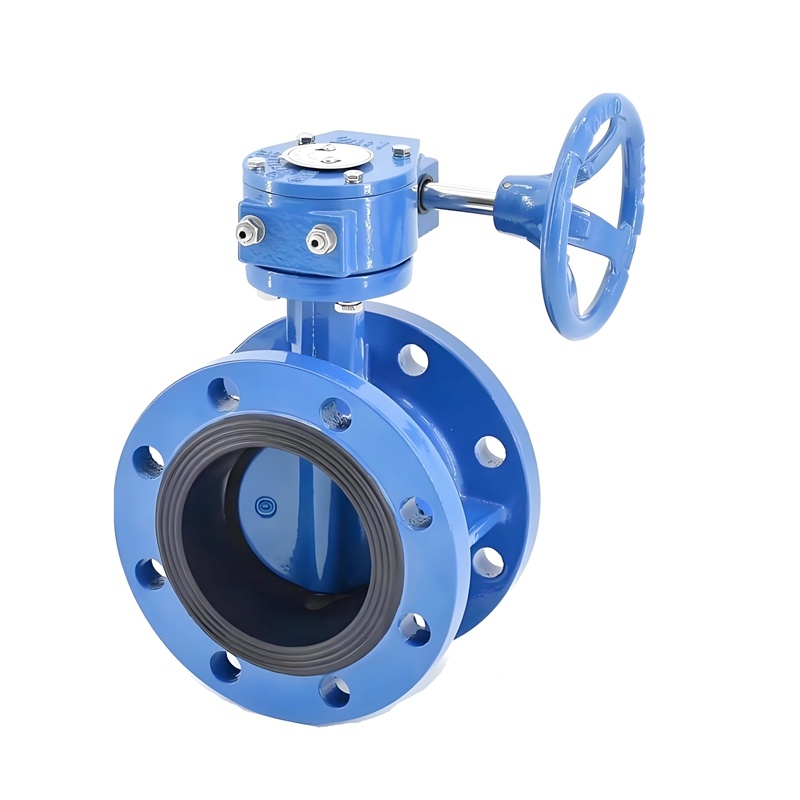

DI WCB Gear Flanged Butterfly Valve DN200 PN16

DI WCB Gear Flanged Butterfly Valve DN200 PN16

Product No.：SV200801
Online Inquiry

Product Introduction

A flanged butterfly valve is a type of valve that is used to control the flow of fluid in a pipeline. It is called a butterfly valve because it has a disc that rotates around an axis, similar to the wings of a butterfly. The valve is attached to flanges on either side of the pipeline, which allows it to be easily installed and removed.

One of the advantages of a flanged butterfly valve is that it is lightweight and compact, making it easy to handle and install. It also has a relatively low cost compared to other types of valves, which makes it an attractive option for many applications.

In addition, the flanged design of the valve provides a secure and leak-free connection to the pipeline. The flanges are bolted together, creating a tight seal that prevents fluid from escaping. This helps to ensure the safety and reliability of the system.

Another benefit of a flanged butterfly valve is that it can be operated quickly and easily. The disc can be rotated with a handle or actuator, allowing the operator to control the flow of fluid with precision. This makes the valve ideal for applications where speed and accuracy are important.

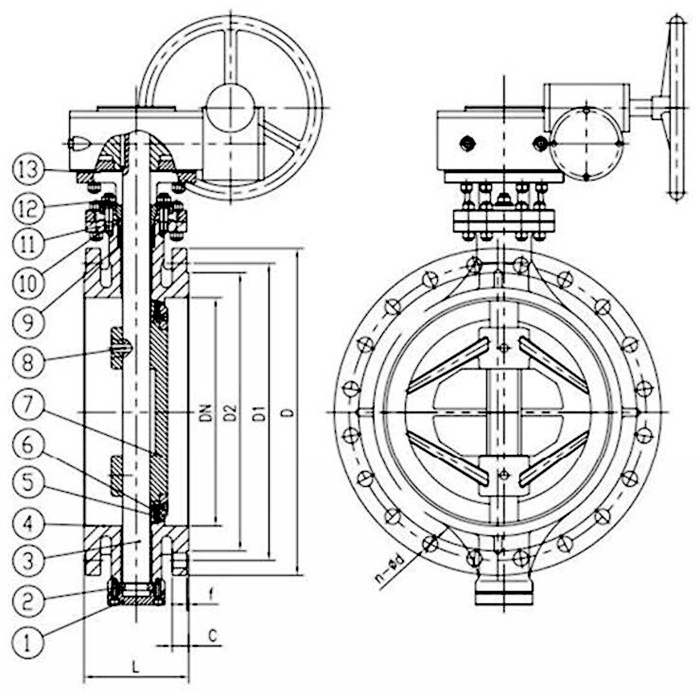

butterfly valve drawing

Overall, a flanged butterfly valve is a versatile and reliable option for many fluid control applications. With its light weight design, low cost, and easy operation, it is a popular choice for a wide range of industries, including oil and gas, chemical processing, and water treatment. You can get an offer any time.
