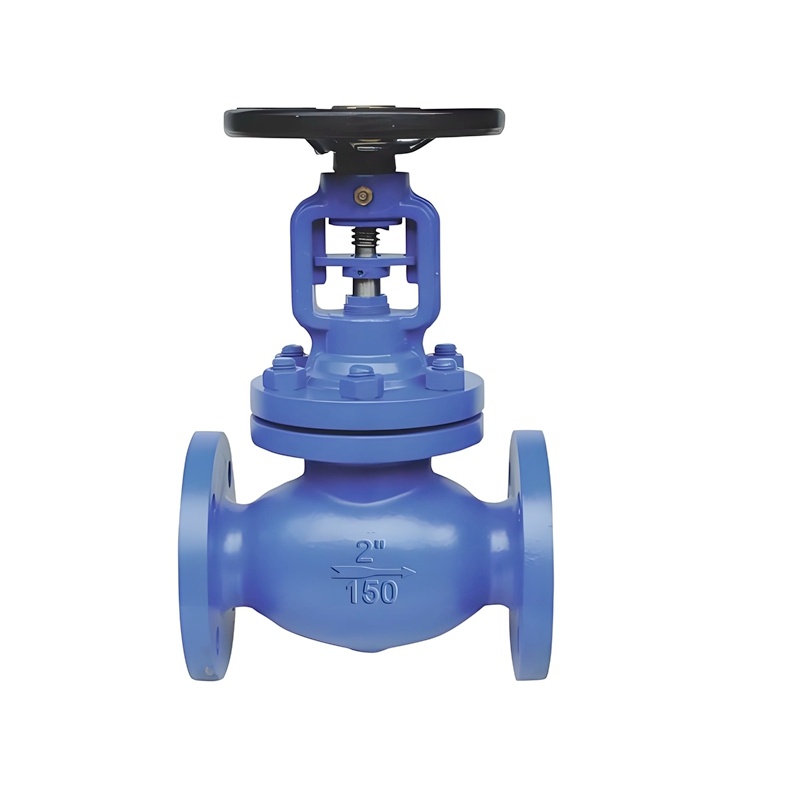

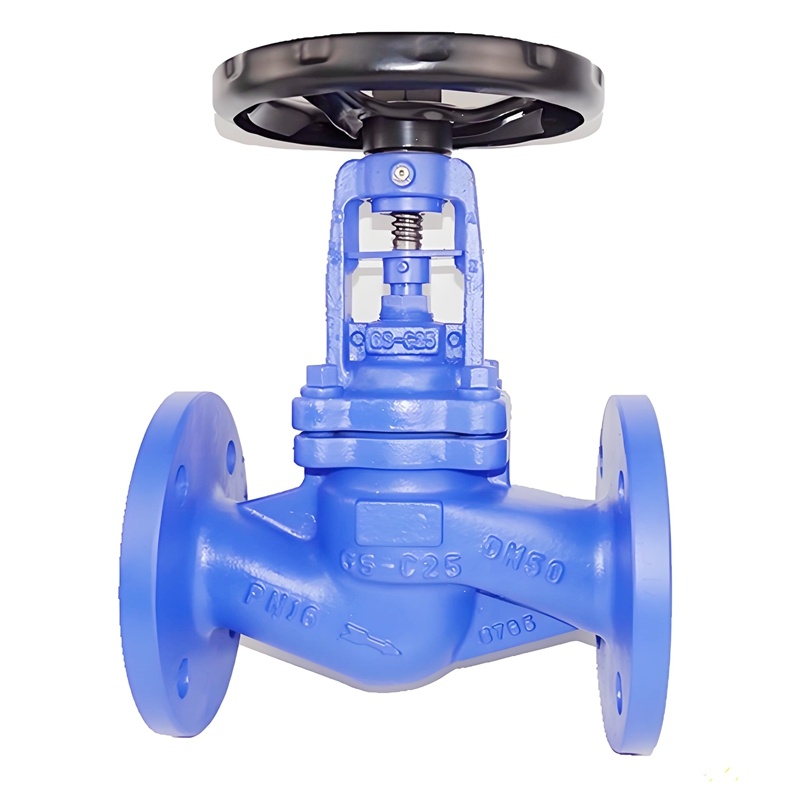

High Pressure Bellows Globe Valve DN100 PN40 CLASS600

High Pressure Bellows Globe Valve DN100 PN40 CLASS600

Product No.：SV200701
Online Inquiry

Product Introduction

Bellows globe valve, also known as bellows stop valve, is a type of valve that is commonly used in various industries. It is designed to control the flow of fluid in a system and is known for its reliable and efficient performance. The bellows globe valve has a unique structure that sets it apart from other types of valves. It features a bellows seal that provides a hermetic seal, preventing fluid leakage even in high-pressure and high-temperature applications.

The bellows globe valve is ideal for use in applications where tight shutoff is necessary. Its compact size and simple construction make it easy to install and operate, and it is available in a range of sizes and materials to suit various requirements. The valve’s bellows seal also makes it suitable for use in systems that handle corrosive or hazardous fluids.

The bellows globe valve has several advantages over other types of valves. Its bellows seal provides a leak-proof design that eliminates the need for external packing. This not only saves time and money on maintenance but also reduces the risk of environmental contamination. The valve’s compact size makes it ideal for use in tight spaces where larger valves cannot be installed.
Advantages

1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem with automatic roll welding. The metal bellow can keep the stem part no leakage.

2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.

3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.

4.Grease nipple. It can direct lubricate the stem, nut and sleeve.

5.Ergonomic hand wheel. It provide longer service life and easier operation.

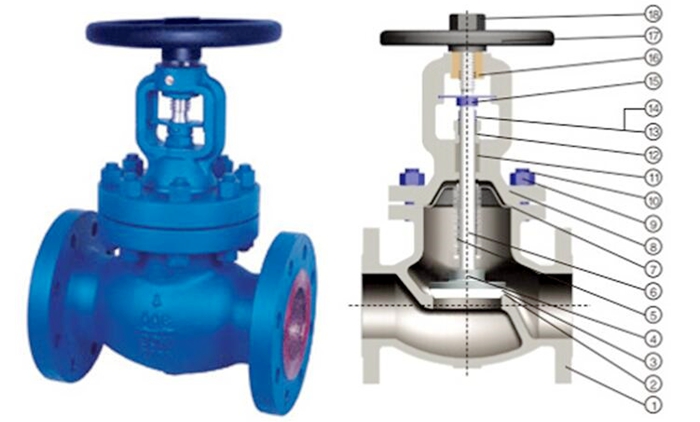

bellows globe valve

Bellows Seal Globe Valve is a new kind of globe valves with dual-seal. So its sealing is very good. The sealing surface is bead welding with hard alloy and the stem surface is in"nitrogen treatment". Hence it is the valve of attrition-resistant, good anti-corrosion performance and long service life.
Overall, the bellows globe valve is a reliable, efficient, and cost-effective solution for controlling fluid flow in industrial applications. Its unique design and features make it an ideal choice for a wide range of applications, and its reputation for reliability and performance has made it a popular valve in many industries.
