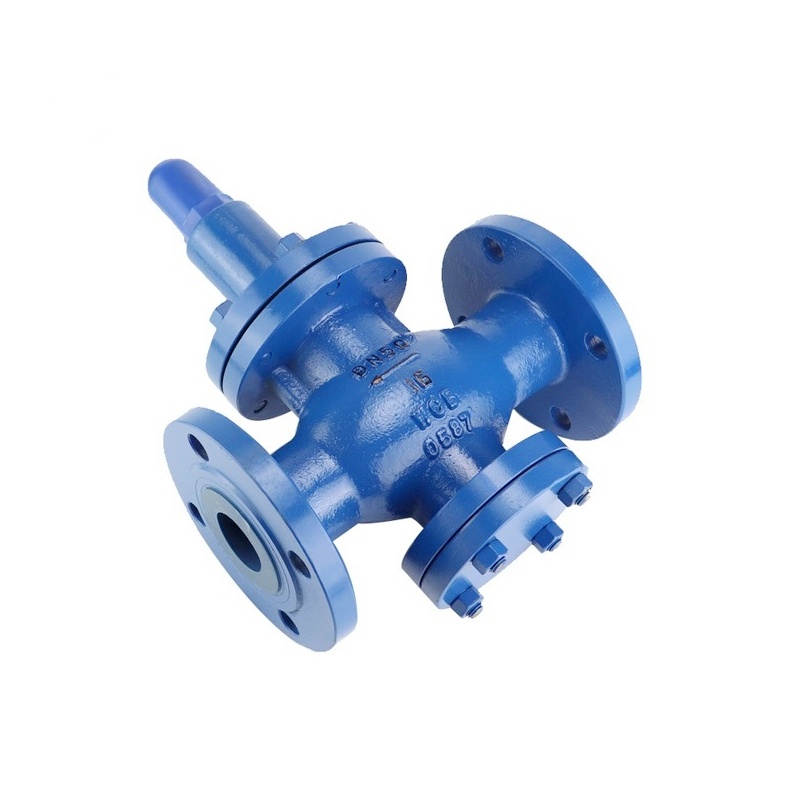

Cast Steel Flanged Water Pressure Reducing Valve
- Product No.：SV200501
Product Introduction
This pressure reducing valve is one type of pressure adjusting valve, which means the pressure after valve can be adjusted according to requirements. After setting up the outlet pressure, the outlet pressure will reduce and keep on the preset one, which will not be changed because of the change of the inlet pressure. It has quality materials, reliable performance and long service life. It is applicable to be mounted on the pipeline.
Specifications
Nominal Pressure: 1.6~6.4MPa, Class150-Class600
Nominal Diameter: 20~500mm
Applicable Temperature: 0~100℃
Inspection and Test: GB/T 13927, API 598
Materials: WCB, SS304, SS316, etc
In conclusion, a water pressure reducing valve is an important component of any plumbing system. It can help to protect your pipes and appliances from damage, conserve water, and improve the performance of your appliances. If you haven't already installed a water pressure reducing valve in your home, now is the time to do so. Shine Valve Co.,ltd supplies many kinds of pressure reducing valves to many customers, welcome to contact us if you have any requests!
This pressure reducing valve is one type of pressure adjusting valve, which means the pressure after valve can be adjusted according to requirements. After setting up the outlet pressure, the outlet pressure will reduce and keep on the preset one, which will not be changed because of the change of the inlet pressure. It has quality materials, reliable performance and long service life. It is applicable to be mounted on the pipeline.
Specifications
Nominal Pressure: 1.6~6.4MPa, Class150-Class600
Nominal Diameter: 20~500mm
Applicable Temperature: 0~100℃
Inspection and Test: GB/T 13927, API 598
Materials: WCB, SS304, SS316, etc
In conclusion, a water pressure reducing valve is an important component of any plumbing system. It can help to protect your pipes and appliances from damage, conserve water, and improve the performance of your appliances. If you haven't already installed a water pressure reducing valve in your home, now is the time to do so. Shine Valve Co.,ltd supplies many kinds of pressure reducing valves to many customers, welcome to contact us if you have any requests!
